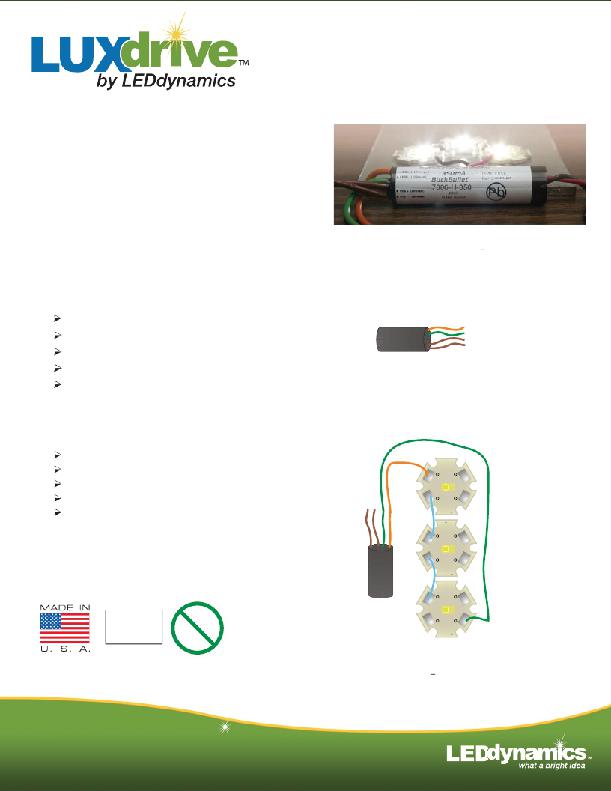

7006 BuckBullet
TM
Wide Range LED Power Module
DATA SHEET Page 1 of 2
Product Overview
The 7006 BuckBullet? AC Driver is a constant current
device that allows operation of LEDs from low-voltage
AC power (8-24VAC).  Its moisture-resistantdesign
allows for outdoor use with landscape lighting systems.
High-speed electronics allow it to be used with either
magnetic transformers or 12VAC electronic
transformers commonly found in accent lighting systems.
Features
AC input voltage up to 24VAC RMS
True constant current output 350mA, 500mA or 700mA*
Extremely small form factor* (0.5”d x 2”l)
Output open and short circuit protection
Not affected by voltage drops on long wire runs
Typical Applications
Landscape & Garden Lighting
7006 BuckBullet ? LED Driver Module powering (3) Endor Star
LEDs in series (V IN > 12VAC)
LED+ ( ORANGE )
LED– ( GREEN )
AC ( BROWN )
AC ( BROWN )
Figure 1.
Wiring Connections
Architectural Lighting
Signal & Marker Lighting
+
7040
LUXDRIVE +
General Illumination Lighting
Sign Lighting
AC AC
–
ENDOR
–
+
7040
LUXDRIVE +
–
ENDOR
–
+
7040
LUXDRIVE +
Com p l i a n t
RoHS
2002/95/EC
Pb
–
ENDOR
–
Figure 2.
BuckBullet TM powering (3) Endor Stars in series
(V IN >12VAC)
* - Units can be customized for OEM applications - Contact LuxDrive for more information.
?2010 LUXdrive, A Division of LEDdynamics, Inc. www.LUXdrive.com.
LEDdynamics, Inc.
Specifications subject to change without notice. May, 2010 - Rev 1.1
802.728.4533 P
802.728.3800 F
sales@LUXdrive.com
www.LUXdrive.com
Made in
the USA
